Filters Scavenge Filters

We offer several different scavenge filters to us on the suction lines of your oil pump. They will help protect your oil pump in the case of catastropic engine failure. These filters feature a coarse stainless screen element that still allows the pump to not have a restriction in flow.

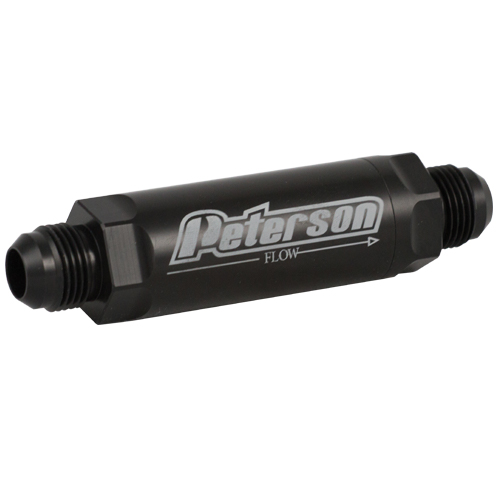

• Inline Filters - Can be placed anywhere in the line between the pan and pump.

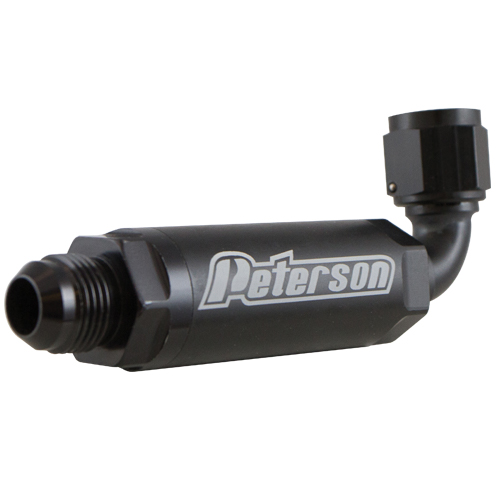

• 90º Inline Filters - Mounts directly to pan outlet with a bnut and then has a 90º bent tube so that it runs inline with the pan

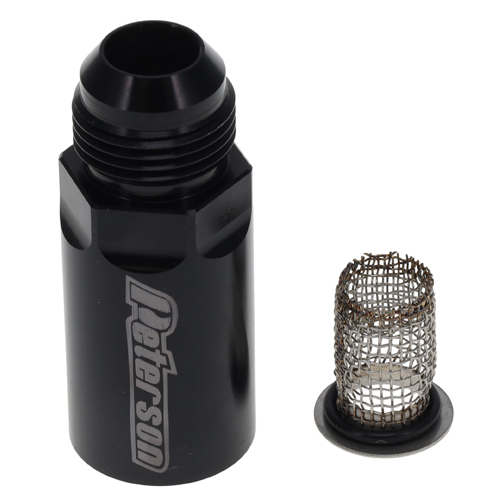

• Pan Mount - Screws directly onto a -12 fitting on the pan.

Features

Specifications

Inline

Part # Length Width Weight
09-0401 4.25"/108 mm 1.3"/33 mm 3.7 oz
09-0402 5.5"/139.7 mm 1.3"/33 mm 4.6 oz
09-0403 5.5"/139.7 1.3"/33 mm 5.1 oz
09-0405 6.5"/165.1 mm 1.5"/38.1 mm 6.9 oz

Inline 90º

Part # Length Width Weight
09-0406 5"/127 mm 1.3"/33 mm 4.1 oz
09-0407 6"/152.4 mm 1.25"/31.75 mm 5.3 oz
09-0408 6.5"/165.1 mm 1.25"/31.75 mm 6.5 oz
09-0409 6.75"/171.45 mm 1.5"/38.1 mm 8 oz

Pan Mount

Part # Length Width Weight
09-0404 3.125"/79.38 mm 1.125"/28.58 mm

Part Numbers

Inline

Part # Description
09-0401 -8 AN Male
09-0402 -10 AN Male
09-0403 -12 AN Male
09-0405 -16 AN Male

Inline 90º

Part # Description
09-0406 -8 AN Male/B-Nut
09-0407 -10 AN Male/B-Nut
09-0408 -12 AN Male/B-Nut
09-0409 -16 AN Male/B-Nut

Pan Mount

Part # Description
09-0404 -12 AN Male

Accessories

Elements

Part # Description
09-0410 Screen fits 09-0402, 09-0403, 09-0407, 09-0408
09-0411 Screen fits 09-0401, 09-0404, 09-0406
09-0412 Screen fits 09-0412
