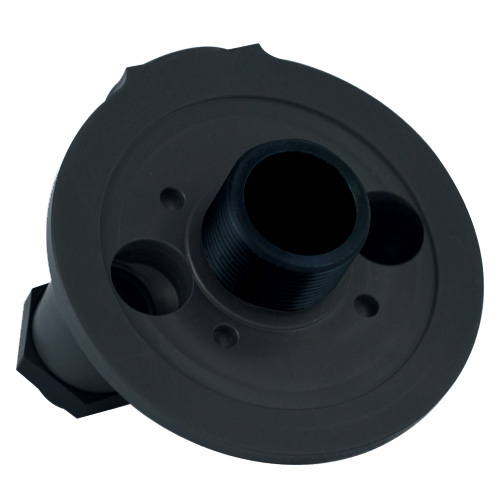

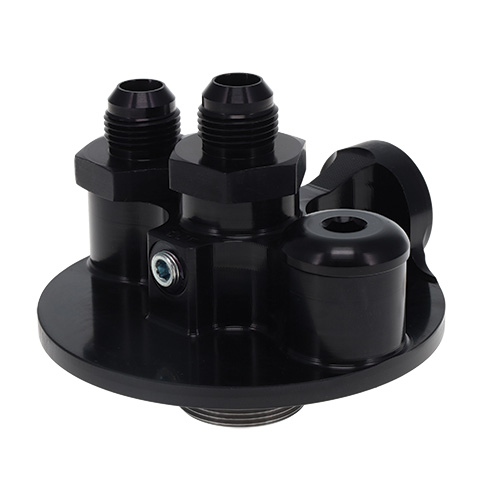

Large Filter Remote Mount Large Filter Remote Top Large Filter Remote Bottom

Filters Large Remote Mount

Our large diameter remote filter mount is CNC machined from aircraft billet aluminum and is profiled for light weight and maximum strength. Mount has 2 inlet and one oulet that are -12 AN port. Filter mounts include (2) -12 AN fittings and (1) plug. Mounts available for most popular 4 1/2 " diameter filters.

Features

Part Numbers

1 1/2"-12 Thread - Fram, Moroso, Wix

Part # Fittings
09-1394 -10 AN Fittings
09-1395 -12 AN Fittings

1 1/2"-16 Thread - AC, Hastings, Motocraft, Purolator

Part # Fittings
09-1396 -10 AN Fittings
09-1397 -12 AN Fittings

Accessories

Mount Brackets

Part # Description
Tube Mounts
09-1590 Fits 1 1/4" Tube
09-1591 Fits 1 3/8" Tube
09-1592 Fits 1 1/2" Tube
09-1593 Fits 1 3/4" Tube
Firewall Mount
09-1584 Large Filter Mount Firewall Mount
Tank Strap Mount
08-2206 6" Tank Strap Mount
08-2207 7" Tank Strap Mount
