Oil Pump Pulleys

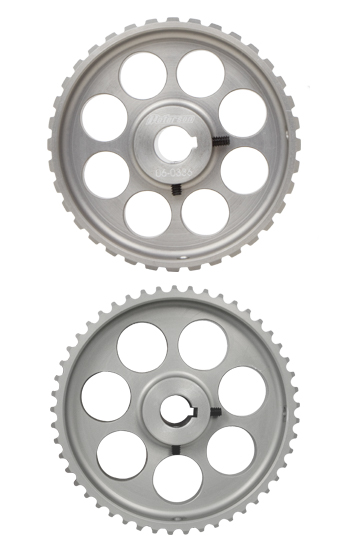

Peterson offers a selection of HTD oil pump pulleys and Gilmer oil pump pulleys. Our pulleys are CNC machined out of 6061 T6 aluminum and then hard coat anodized for long term wear resistance. The center hole is a standard 5/8" with a 3/16" keyway to fit popular wet and dry sump oil pumps.

Specifications
Part Numbers
Accessories

Features

6061 T6 billet aluminum

Hard coat anodized

8mm HTD or Gilmer tooth profile

Fits standard 5/8" shaft with 3/16" keyway

4 set screws for firm connection to the pump shaft

Specifications

Gilmer

Part #	Teeth	OD	Width
06-0324	24 Tooth	2.839"	1.020"
06-0328	28 Tooth	3.312"	1.020"
06-0332	32 Tooth	3.375"	1.020"
06-0336	36 Tooth	4.273"	1.020"
06-0328-W	28 Tooth	3.312"	1.125"

HTD

Part #	Teeth	OD	Width
06-1332	32 Tooth	3.154"	1.020"
06-1333	33 Tooth	3.254"	1.020"
06-1334	34 Tooth	3.354"	1.020"
06-1335	35 Tooth	3.455"	1.020"
06-1336	36 Tooth	3.555"	1.020"
06-1337	37 Tooth	3.655"	1.020"
06-1338	38 Tooth	3.755"	1.020"
06-1339	39 Tooth	3.856"	1.020"
06-1340	40 Tooth	3.956"	1.020"
06-1344	44 Tooth	4.357"	1.020"
06-1349	49 Tooth	4.858"	1.020"
06-1333-W	33 Tooth	3.254"	1.125"
06-1336-W	36 Tooth	3.555"	1.125"
06-1338-W	38 Tooth	3.755"	1.125"
06-1339-W	39 Tooth	3.856"	1.125"
06-1340-W	40 Tooth	3.956"	1.125"

Part Numbers

Gilmer Oil Pump Pulleys

Part #	Description
1.020" Wide
06-0324	24 Tooth
06-0328	28 Tooth
06-0332	32 Tooth
06-0336	36 Tooth
1.25" Wide
06-0328-W	28 Tooth

HTD Oil Pump Pulleys

Part #	Description
1.020" Wide
06-1332	32 Tooth
06-1333	33 Tooth
06-1334	34 Tooth
06-1335	35 Tooth
06-1336	36 Tooth
06-1337	37 Tooth
06-1338	38 Tooth
06-1339	39 Tooth
06-1340	40 Tooth
06-1344	44 Tooth
06-1349	49 Tooth
1.25" Wide
06-1333W	33 Tooth
06-1336W	36 Tooth
06-1338W	38 Tooth
06-1339W	39 Tooth
06-1340W	40 Tooth

Accessories

Pulley Flanges

Part #	Description
05-0624	Fits 06-0324
05-0628	Fits 06-0328, 06-0328-W
05-0632	Fits 06-0332
05-0636	Fits 06-0336

Set Screws

Part #	Description
05-0398	Set Screw, Package of 10

Key Stock

Part #	Description
05-0399	Pulley Key Stock
