Large Filter Remote Mount Large Filter Remote Top Large Filter Remote Bottom Large Filter Remote Bottom

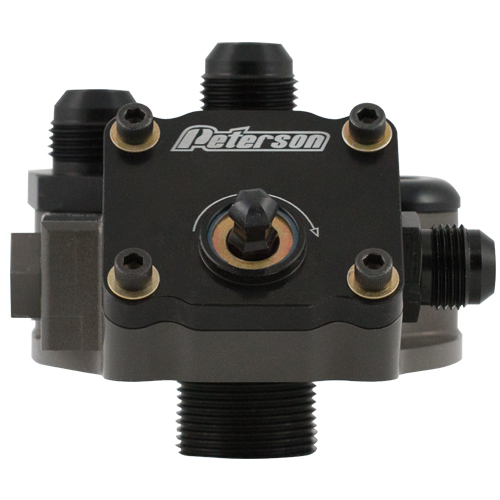

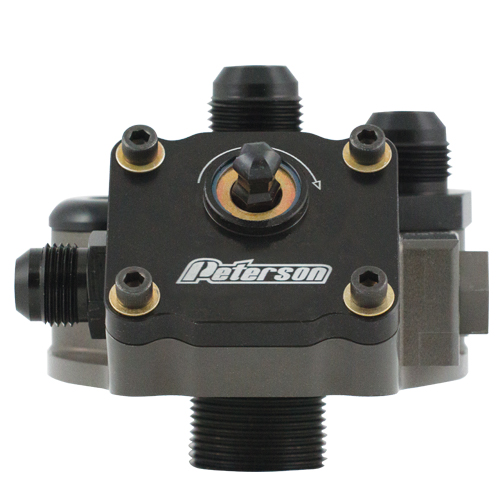

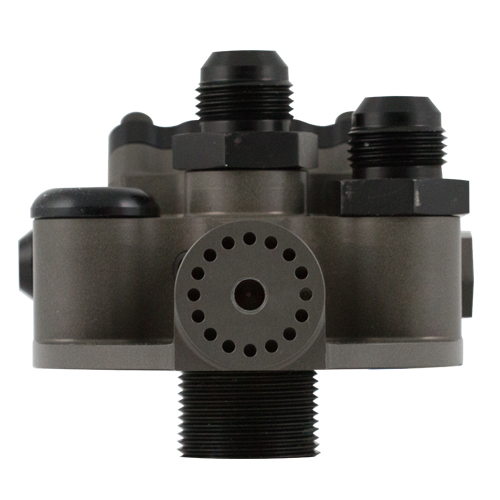

Large Primer Remote Mount

Peterson's primer filter mount allows you to use a standard drill to prime your engine easily. Utilizing our unique R4 rotor design, this small pump can give you 20 psi of oil pressure in as little as 10 seconds to make sure all your bearing surfaces are properly oiled cutting down on engine wear. Features billet aluminum construction, AN port fittings and tube or firewall mount.

Features

Part Numbers

1 1/2"-12 Thread - Fram, Moroso, Wix

Part # Description
Left Side Inlet
09-1560 -10 AN Fittings
09-1561 -12 AN Fittings
Right Side Inlet
09-1570 -10 AN Fittings
09-1571 -12 AN Fittings

1 1/2"-16 Thread - AC, Hastings, Motocraft, Purolator

Part # Description
Left Side Inlet
09-1562 -10 AN Fittings
09-1563 -12 AN Fittings
Right Side Inlet
09-1572 -10 AN Fittings
09-1573 -12 AN Fittings

Accessories

Mount Brackets

Part # Description
Tube Mounts
09-1590 Fits 1 1/4" Tube
09-1591 Fits 1 3/8" Tube
09-1592 Fits 1 1/2" Tube
09-1595 Fits 1 5/8" Tube
09-1593 Fits 1 3/4" Tube
Firewall Mount
09-1584 Large Filter Mount Firewall Mount
Tank Strap Mount
08-2206 6" Tank Strap Mount
08-2207 7" Tank Strap Mount
