Spin-on filter mounts

Peterson makes several filter mounts for the popular makes of spin on oil filters. CNC machined out of Billet Aluminum.

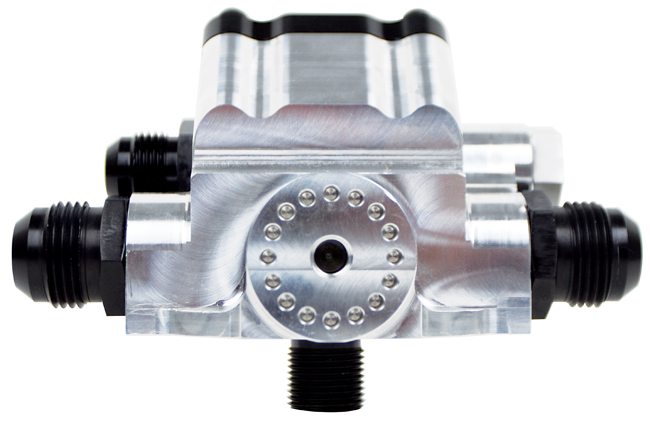

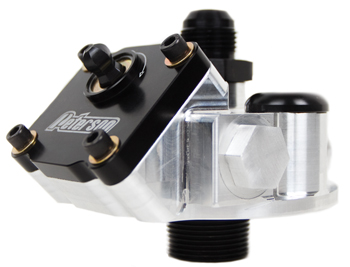

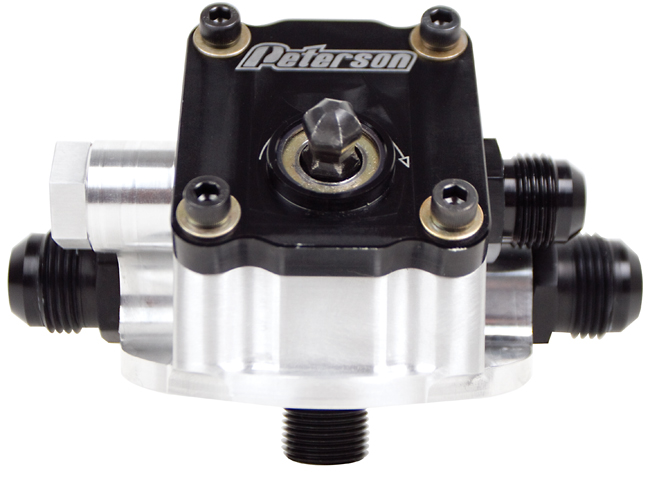

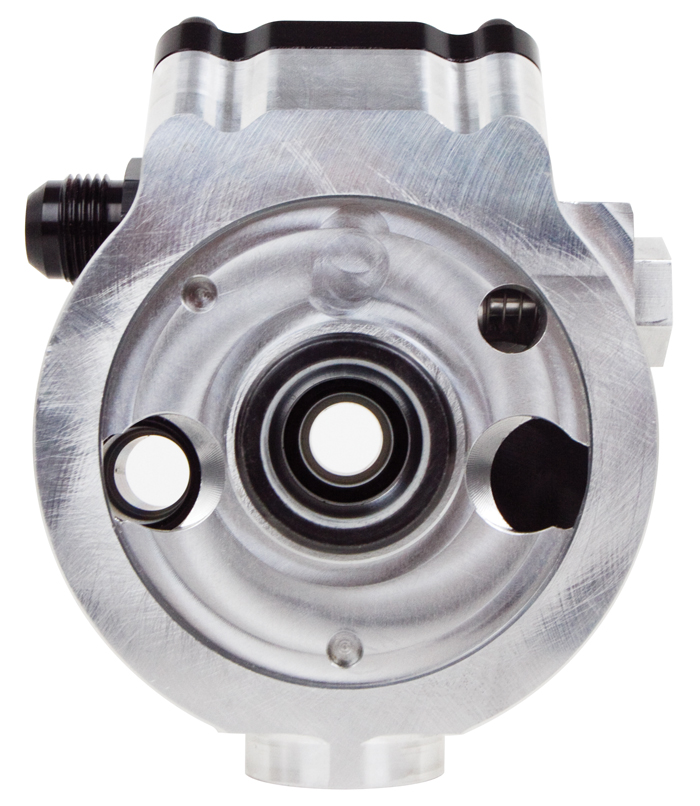

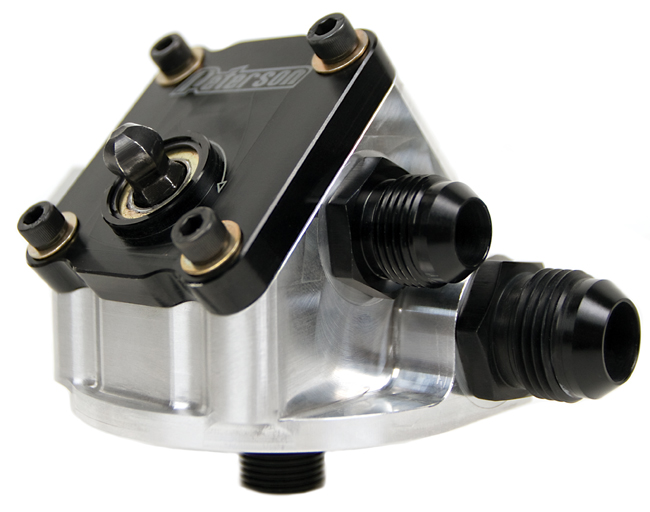

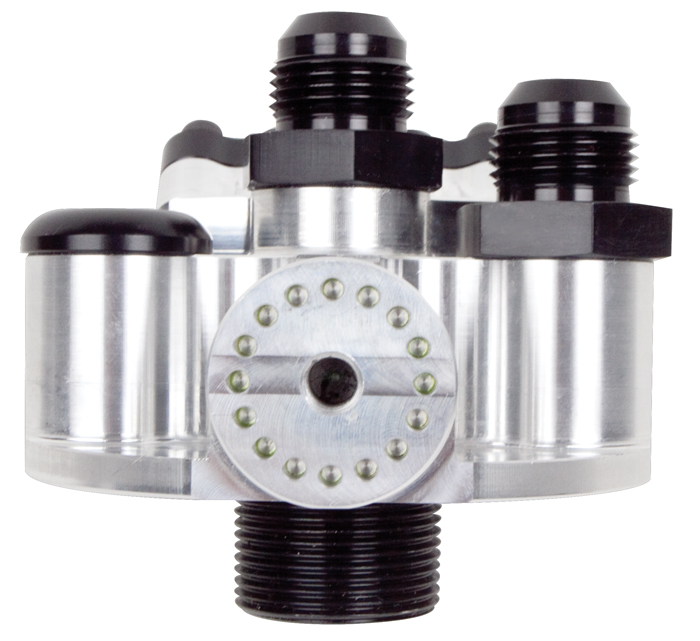

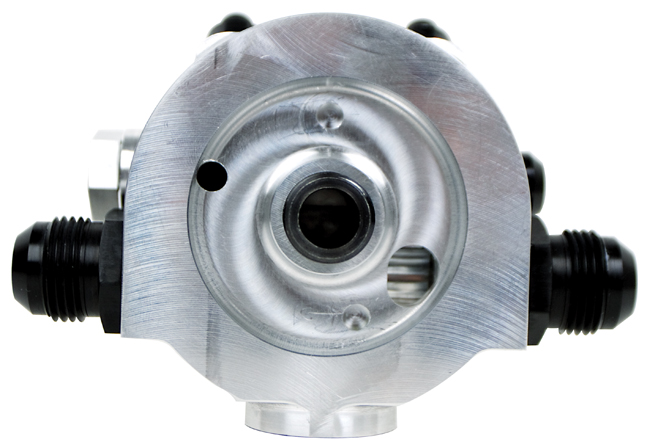

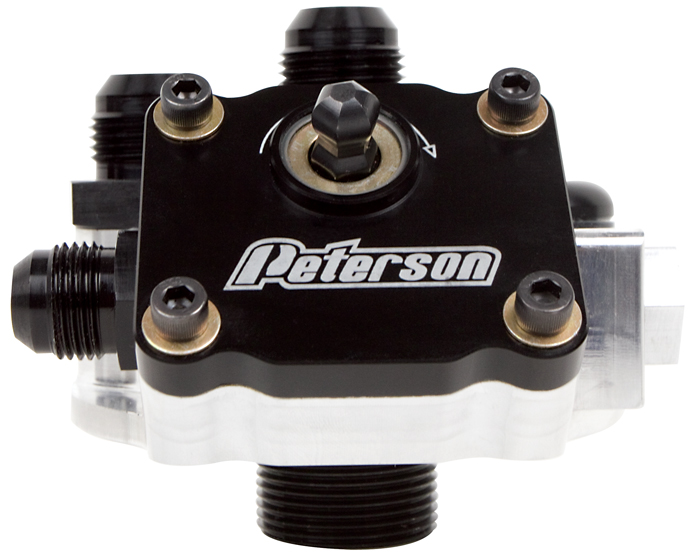

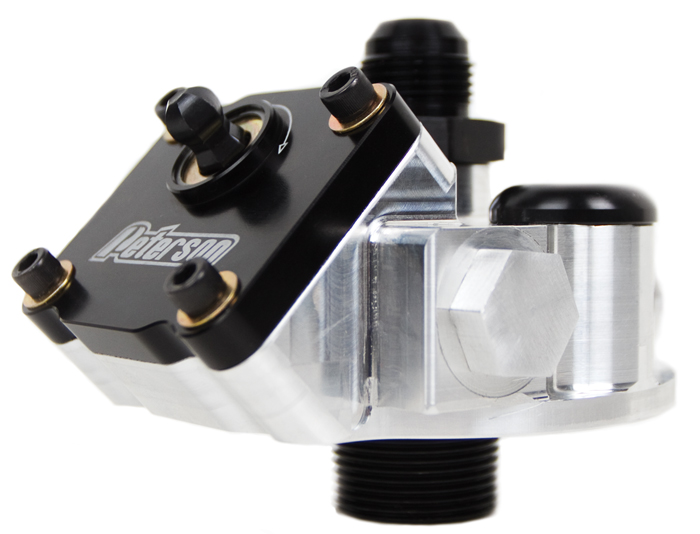

Remote Filter Mount w/Primer Pump

Peterson’s new primer filter mount allows you to use a standard drill to prime your engine easily. Utilizing our unique R4 rotor design, this small pump can give you 20psi of oil pressure in as little as 10 sec. to make sure all your bearing surfaces are properly oiled cutting down on engine wear. Features billet aluminum construction, AN port fittings and tube or firewall mount.

For plumbing instructions click here.





Large Filters


1 1/2 - 12" Thread Filters


09-1560 -10 AN Fittings - Left Side Primer Inlet
09-1561 -12 AN Fittings

- Left Side Primer Inlet
09-1570 -10 AN Fittings - Right Side Primer Inlet
09-1571 -12 AN Fittings

- Right Side Primer Inlet



1 1/2 - 16" Thread Filters


09-1562 -10 AN Fittings - Left Side Primer Inlet
09-1563 -12 AN Fittings - Left Side Primer Inlet
09-1572 -10 AN Fittings - Right Side Primer Inlet
09-1573 -12 AN Fittings

- Right Side Primer Inlet




Small Filters


Chevy Post


09-1501 Left to Right -10AN


09-1502 Left to Right -12AN


09-1503 Right to Left -10AN


09-1504 Right to Left -12AN



Ford Post


09-1511 Left to Right -10AN


09-1512 Left to Right -12AN


09-1513 Right to Left -10AN


09-1514 Right to Left -12AN



Mount Brackets


09-1590 Mount Bracket 1 1/4" Tube


09-1591 Mount Bracket 1 3/8" Tube


09-1592 Mount Bracket 1 1/2" Tube


09-1593 Mount Bracket 1 3/4" Tube


09-1584 Mount Bracket-Small Mount Flange Mount


09-1594 Mount Bracket-Large Mount Flange Mount



<

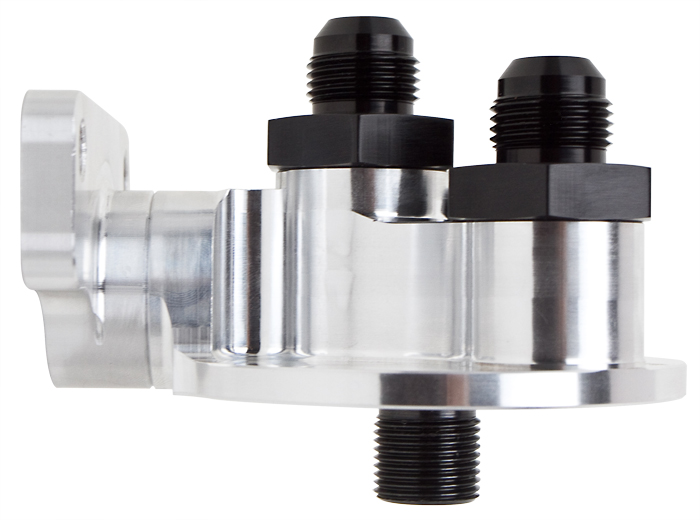

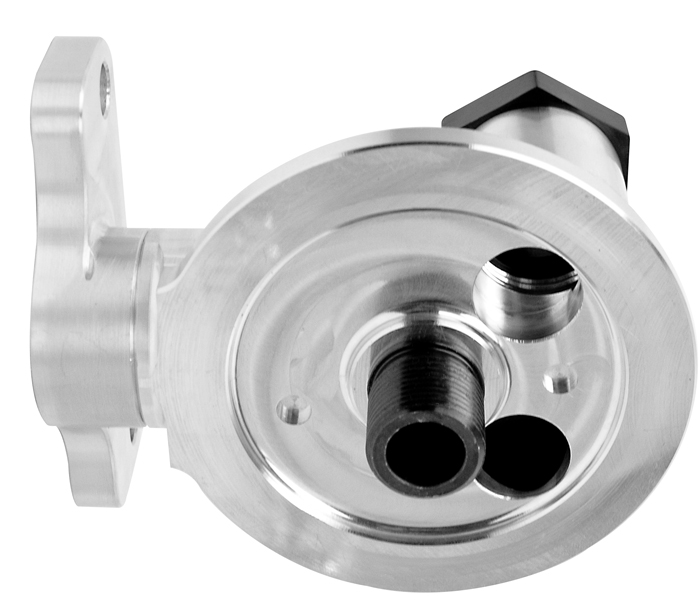

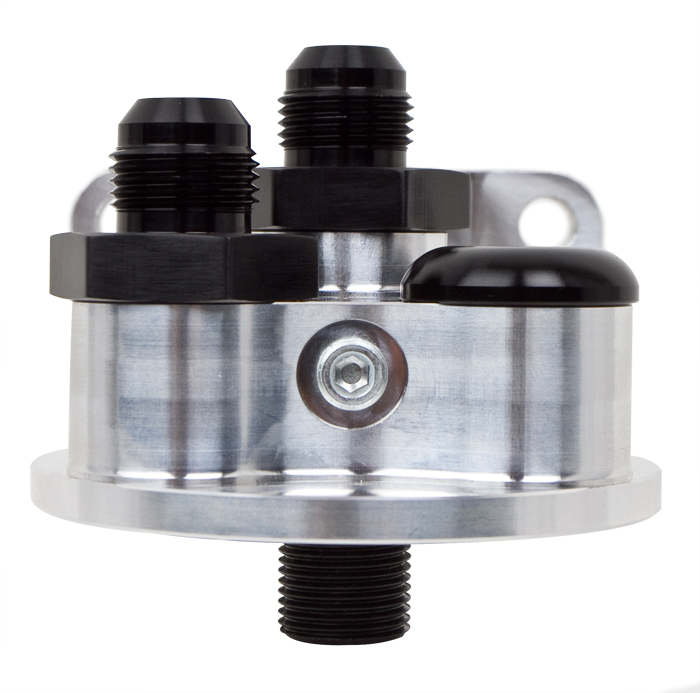

Remote Filter Mounts

Machined from billet 6061-T6 aluminum for durability. Ports are machined for free flow of oil. These remote filter adapters feature -12 AN ports on the inlets and outlets. Fittings are included.





Chevrolet Filter 13/16" Thread


09-1301 -10 AN Fittings - Firewall Mount
09-1302 -12 AN Fittings - Firewall Mount
09-1321 -10 AN Fittings - 1 1/4" Tube Mount
09-1322 -12 AN Fittings - 1 1/4" Tube Mount
09-1323 -10 AN Fittings - 1 3/8" Tube Mount
09-1324 -12 AN Fittings - 1 3/8" Tube Mount
09-1325 -10 AN Fittings - 1 1/2" Tube Mount
09-1326 -12 AN Fittings - 1 1/2" Tube Mount
09-1327 -10 AN Fittings - 1 3/4" Tube Mount
09-1328 -12 AN Fittings - 1 3/4" Tube Mount


Ford Filter 3/4" Thread


09-1311 -10 AN Fittings - Firewall Mount
09-1312 -12 AN Fittings - Firewall Mount
09-1331 -10 AN Fittings - 1 1/4" Tube Mount
09-1332 -12 AN Fittings - 1 1/4" Tube Mount
09-1333 -10 AN Fittings - 1 3/8" Tube Mount
09-1334 -12 AN Fittings - 1 3/8" Tube Mount
09-1335 -10 AN Fittings - 1 1/2" Tube Mount
09-1336 -12 AN Fittings - 1 1/2" Tube Mount
09-1337 -10 AN Fittings - 1 3/4" Tube Mount
09-1338 -12 AN Fittings - 1 3/4" Tube Mount



Mount Brackets


09-1590 Mount Bracket 1 1/4" Tube


09-1591 Mount Bracket 1 3/8" Tube


09-1592 Mount Bracket 1 1/2" Tube


09-1593 Mount Bracket 1 3/4" Tube


09-1584 Mount Bracket-Small Mount Flange Mount


09-1594 Mount Bracket-Large Mount Flange Mount




<

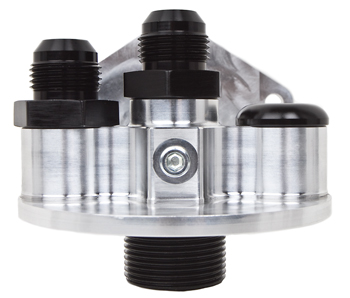

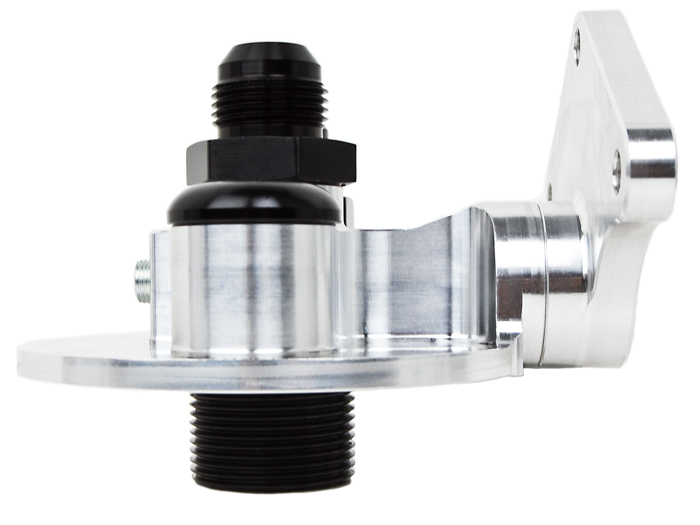

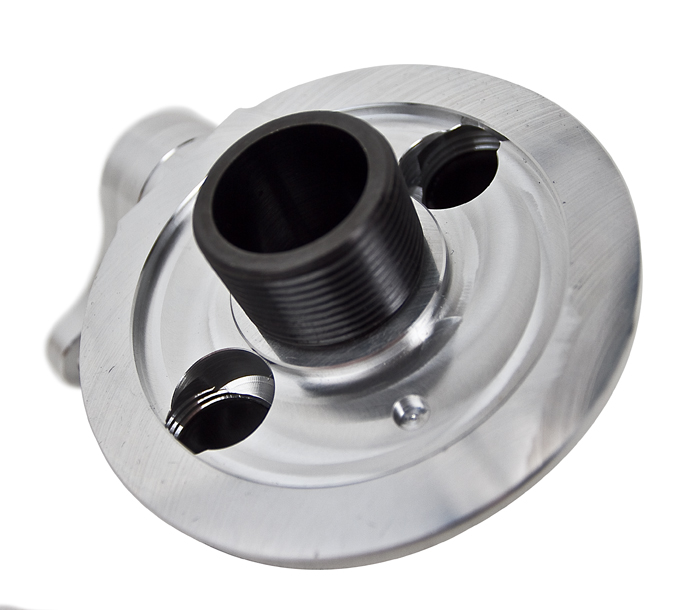

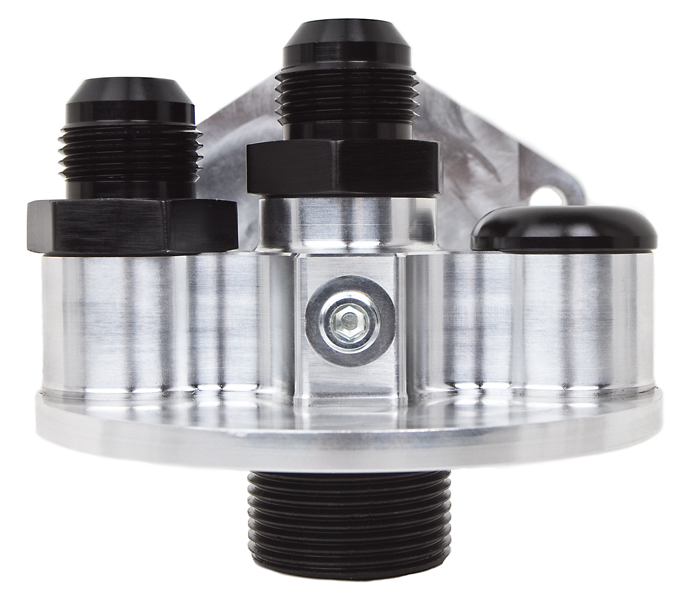

Large Diameter Remote Filter Mounts

Machined from billet 6061-T6 aluminum for durability. Ports are machined for free flow of oil. These remote filter adapters feature -12 AN ports on the inlets and outlets. Fittings are included.



1 1/2 - 12" Thread Filters


Fram, Moroso, WIX


09-1351 -10 AN Fittings - Firewall Mount
09-1352 -12 AN Fittings - Firewall Mount
09-1371 -10 AN Fittings - 1 1/4" Tube Mount
09-1372 -12 AN Fittings - 1 1/4" Tube Mount
09-1373 -10 AN Fittings - 1 3/8" Tube Mount
09-1374 -12 AN Fittings - 1 3/8" Tube Mount
09-1375 -10 AN Fittings - 1 1/2" Tube Mount
09-1376 -12 AN Fittings - 1 1/2" Tube Mount
09-1377 -10 AN Fittings - 1 3/4" Tube Mount
09-1378 -12 AN Fittings - 1 3/4" Tube Mount

1 1/2 - 16" Thread Filters


AC, Hastings, Motorcraft, Purolator

09-1361 -10 AN Fittings - Firewall Mount
09-1362 -12 AN Fittings - Firewall Mount
09-1381 -10 AN Fittings - 1 1/4" Tube Mount
09-1382 -12 AN Fittings - 1 1/4" Tube Mount
09-1383 -10 AN Fittings - 1 3/8" Tube Mount
09-1384 -12 AN Fittings - 1 3/8" Tube Mount
09-1385 -10 AN Fittings - 1 1/2" Tube Mount
09-1386 -12 AN Fittings - 1 1/2" Tube Mount
09-1387 -10 AN Fittings - 1 3/4" Tube Mount
09-1388 -12 AN Fittings - 1 3/4" Tube Mount



Mount Brackets


09-1590 Mount Bracket 1 1/4" Tube


09-1591 Mount Bracket 1 3/8" Tube


09-1592 Mount Bracket 1 1/2" Tube


09-1593 Mount Bracket 1 3/4" Tube


09-1584 Mount Bracket-Small Mount Flange Mount


09-1594 Mount Bracket-Large Mount Flange Mount
