Drive Accessories
Peterson offers a whole range of drive mandrels, spacers and washers to fit your specific drive applications. We also carry a full supply of Gilmer and HTD belts in a variety of lengths.

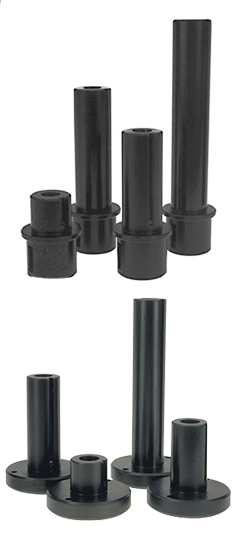

Oil Pump Drive Mandrels

Peterson Fluid Systems small block and big block Chevrolet dry sump mandrels fit most applications. Precision machined from stress proof steel, they will provide the precision and dependability that racers demand. Note: Peterson can produce mandrels of other lengths for special applications. Call for details.

Small Block Chevrolet

1" OD Portion length Steel Aluminum
1.250" long 05-0701 ----------
2.400" long 05-0702 05-0706
3.250" long 05-0703 05-0707
5.000" long 05-0704 05-0708



Big Block Chevrolet

1" OD Prtion Length

Steel

.860" long

05-0711

1.830" long

05-0712

2.500" long

05-0715

2.760" long

05-0713

5.000" long

05-0714



Mandrel Bolts & Washers

Peterson mandrel bolts are Grade 8 bolts in specific lengths for our mandrels. We also stock bolts in intermediate sizes for custom length mandrels. Note: Mandrel bolts are supplied with a L-9 washer.

05-0751 7/16-20 x 3 1/2" Use with 05-0701 Mandrel
05-0752 7/16-20 x 5" Use with 05-0702 Mandrel
05-0753 7/16-20 x 6" Use with 05-0703 Mandrel
05-0754 7/16-20 x 8" Use with 05-0704 Mandrel
05-0761 1/2-20 x 3 1/2" Use with 05-0711 Mandrel
05-0762 1/2-20 x 4" Use with 05-0712 Mandrel
05-0763 1/2-20 x 4 1/2" Use with 05-0713 Mandrel
05-0764 1/2-20 x 6" Use with 05-0714 Mandrel
05-0790 7/16" L-9 heavy duty washer
05-0791 1/2" L-9 heavy duty washer





Drive Pulley Guide Washers

05-0730 Mandrel step washer 2 1/2" OD w/ 7/16" bolt hole
05-0731 Mandrel step washer 2 1/2" OD w/ 1/2" bolt hole
05-0732 Mandrel step washer 2 1/2" OD w/ 5/8" bolt hole
05-0735 Mandrel guide washer 2 1/2" OD w/ 1" ID hole .125" thick
05-0736 Mandrel guide washer 3" OD w/ 1" ID hole .125" thick
05-0737 Mandrel guide washer 3 1/2" OD w/ 1" ID hole .125" thick





Mandrel Spacers

Peterson mandrel spacers, in thickness from 1/4" to 1 1/4", properly space and align the mandrel pulley pack. Mandrel spacers are machined from 6061-T6 aluminum.

05-0740 Mandrel Spacer .250" Thick
05-0741 Mandrel Spacer .375" Thick
05-0742 Mandrel Spacer .500" Thick
05-0743 Mandrel Spacer .750" Thick
05-0744 Mandrel Spacer 1.000" Thick
05-0746 Mandrel Spacer 1.250" Thick





Pulley Flanges
Note: May not fit pulleys from other manufacturers
05-0624 Fits 05-0324
05-0628 Fits 05-0328, 05-1334, 05-1335,
05-1336, 05-1337
05-0632 Fits 05-0332
05-0636 Fits 05-0336
05-1632 Fits 05-1332
05-1633 Fits 05-1333
05-1638 Fits 05-1338
05-1639 Fits 05-1339
05-1640 Fits 05-1340
05-1649 Fits 05-1349



Gilmer Belts

1/2" Wide, 3/8 Pitch

05-0950 187-L-050 18.7" long
05-0900 210-L-050 21" long
05-0903 225-L-050 22.5" long
05-0906 240-L-050 24" long
05-0909 255-L-050 25.5" long
05-0912 270-L-050 27" long
05-0915 285-L-050 28.5" long
05-0918 300-L-050 30" long
05-0930 315-L-050 31.5" long
05-0924 322-L-050 32.2" long
05-0960 345-L-050 34.5" long
3/4" Wide, 3/8 Pitch

05-0901 210-L-075 21" long
05-0904 225-L-075 22.5" long
05-0907 240-L-075 24" long
05-0910 255-L-075 25.5" long
05-0913 270-L-075 27" long
05-0916 285-L-075 28.5" long
05-0919 300-L-075 30" long
05-0931 315-L-075 31.5" long
05-0925 322-L-075 32.2" long
05-0961 345-L-075 34.5" long
1" Wide, 3/8 Pitch

05-0902 210-L-100 21" long
05-0905 225-L-100 22.5" long
05-0908 240-L-100 24" long
05-0911 255-L-100 25.5" long
05-0914 270-L-100 27" long
05-0917 285-L-100 28.5" long
05-0920 300-L-100 30" long
05-0932 315-L-100 31.5" long
05-0926 322-L-100 32.2" long
05-0929 390-L-100 39" long





HTD Belts
20 mm Wide
05-1900 480mm HTD Belt
05-1901 536mm HTD Belt
05-1902 560mm HTD Belt
05-1903 600mm HTD Belt
05-1904 632mm HTD Belt
05-1905 640mm HTD Belt
05-1906 720mm HTD Belt
05-1907 800mm HTD Belt
05-1908 624mm HTD Belt
05-1909 656mm HTD Belt
05-1910 680mm HTD Belt
05-1915 880mm HTD Belt
30 mm Wide
05-1931 536mm HTD Belt
05-1933 600mm HTD Belt
05-1939 656mm HTD Belt
05-1940 1040mm HTD Belt
